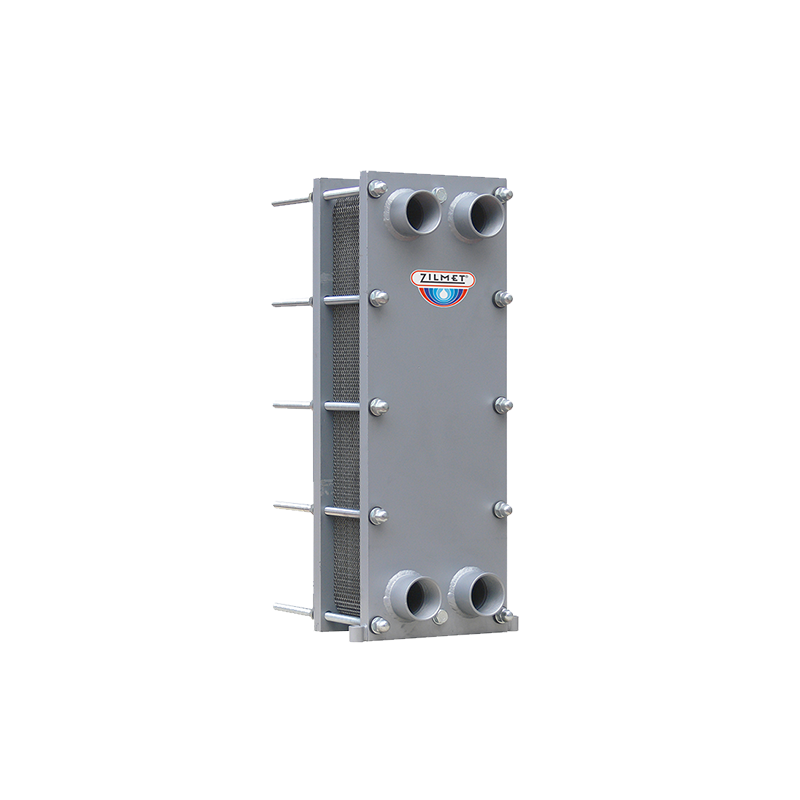

Plate & Frame

Plate & Frame

(Z2, Z3, Z4), Heat Exchangers

Features

Suitable to a wide variety of applications including:
  • Production of sanitary hot water
  • Decoupling of thermal circuits
  • District heating systems
  • Recovery of heat coming from industrial processes
  • Cooling or heating of alimentary fluids (milk, beer, wine, etc.)
  • Cooling of industrial machineries
  • Heating of water for swimming pools and solar systems
Advantages: The Zilmet Difference High efficiency Long life Low price Small dimensions High modularity Easy maintenance High reliability
  • Plates: Manufactured with 316 L Stainless steel .0197 in thick
  • Allowing smooth and quick transition to assure great corrosion resistance
  • Gaskets: Equipped with glued EPDM gaskets
  • Maximum working temperature: 284°F
  • Nitrile Glued gaskets available upon request
  • For particular applications, such as gasoline and oils
  • Maximum working temperature: 230°F
  • Frames: Manufactured with silver painted carbon steel
  • Thickness is designed for respective working pressure
  • 100% of Zilmet plate Heat exchangers are tested before shipment at 1.5 times the maximum working pressure
