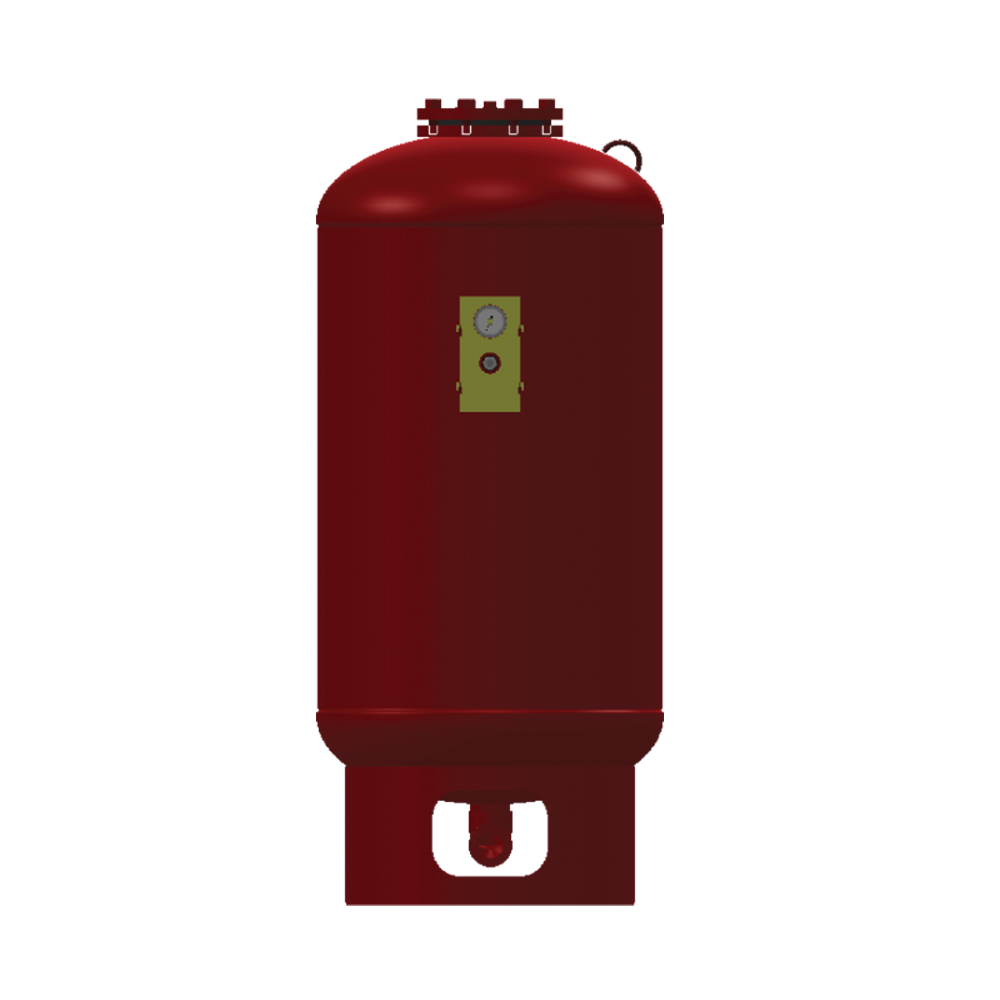

Hydro-Pneumatic Tanks

Hydro-Pneumatic Tanks

(ZHXT, ZHXA)

Features

Available with full acceptance diaphragm or replaceable bladder

All tanks come with the following:
Integrated pressure gauge
Bladder / diaphragm integrity monitor
Easy Access air vent
Protective Guard
Pre-charge of 40 PSIG

Accessories and Options:

Seismic restraints
Saddles to mount the tank horizontally
Clips to secure the tank in place
Available in either 304 / 316 stainless steel

Specifications

All ASME rated tanks designed, and constructed to confirm to ASME Section VIII, Div I
Shell: Carbon Steel
Connection: Epoxy Lined
Bladder / diaphragm: Heavy Duty Butyl (FDA Approved)
Pre-Charge: 40 PSIG
Max Operating Pressure: 125 PSIG (Replaceable Bladder) 200 PSIG (Fixed Diaphragm)
Max Operating Temperature: 240°F
1 year warranty
Available in ASME and non-ASME construction
Also available in 200 and 250 PSIG

Brochure

Online Heating Catalog Brochure

Manuals & Submittals

Commercial Hydro Pneumatic Well Tanks Installation Manual

Hydropneumatic with Fixed Diaphragm Data Submittal

Hydropneumatic with Replacable Bladder Data Submittal

Bladder Replacement Instructions
